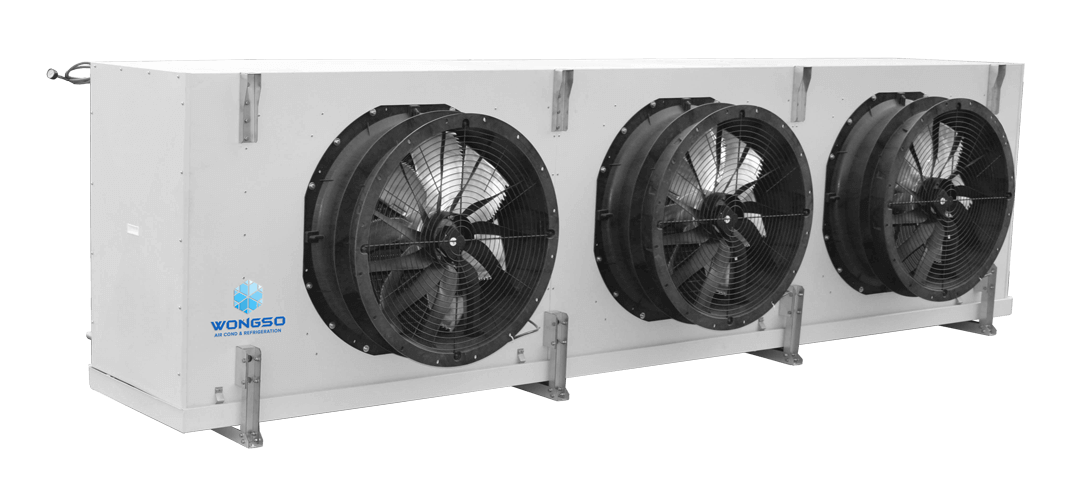

EWBF Evaporator Wongso Blast Freezer
FAN QUANTITY
1 – 4 fans
FAN DIAMETER
630 / 800 / 900 mm
FIN SPACING
8 or 12 mm
EXCHANGE SURFACE
75 – 439 m2
The EWBF Series combines advanced European design software with high-efficiency components to deliver precise and reliable cooling. Supporting refrigerants like R404A, CO₂, R410A, and R507A, it adapts to various low-temperature applications.
Its flexible airflow design—forward, upward, or downward—ensures optimal cold distribution, while high-performance fans, an advanced pipeline system, and a durable, corrosion-resistant casing maximize efficiency and reliability in demanding environments.
Features
FAN TECHNOLOGY
Equipped with a high-quality IP54 motor, the fan system features an optimized gap between the wind vane, guide ring, and hyperbolic ducting. This design ensures maximum efficiency and airflow performance.
PIPELINE DESIGN
The heat exchanger utilizes a direct oil return and counterflow system to prevent oil accumulation. This maximizes the heat exchanger’s surface area, enhances heat transfer efficiency, and ensures optimal superheat temperature.
COPPER PIPE
Featuring high-pressure static fans and advanced Italian software, the system uses 99.9% pure multi-tooth inner-thread copper pipes, enhancing surface area and heat transfer efficiency.
CASING BODY
Constructed from 3003 aluminum alloy or DC51-D+180g steel, the casing is powder-coated for outdoor durability. After high-temperature curing, the material achieves high strength and superior corrosion resistance. The standard color is RAL7035.

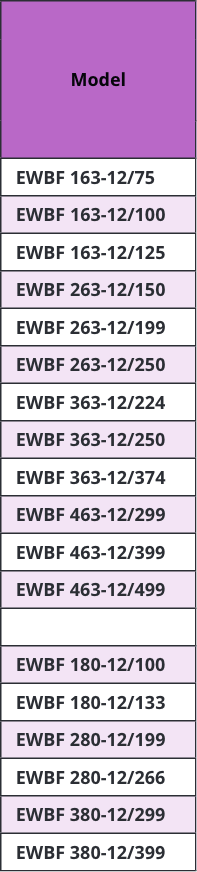

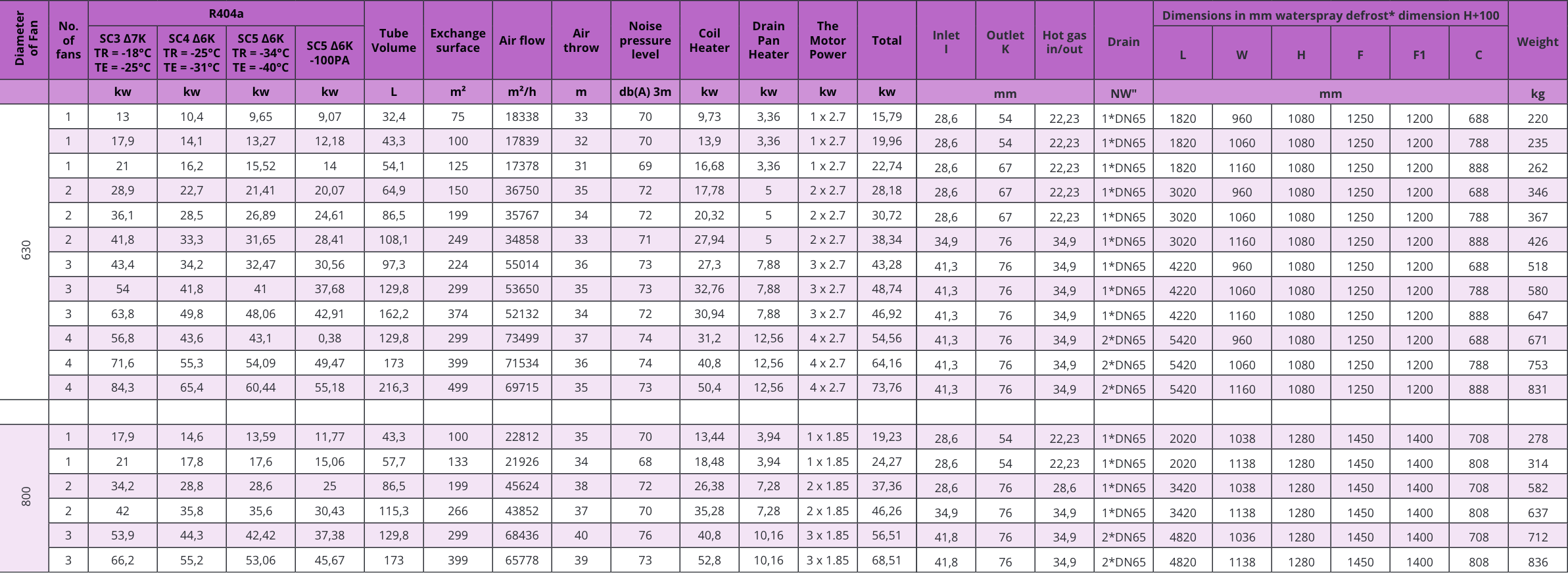

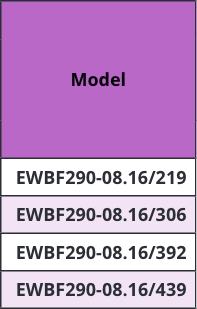

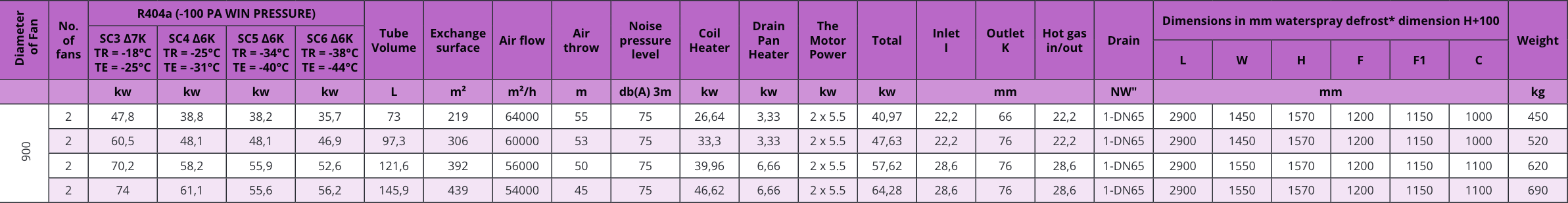

Technical Data
